Mini-Split Air Handler: Everything You Need to Know

by Dua Jones June 11, 2026

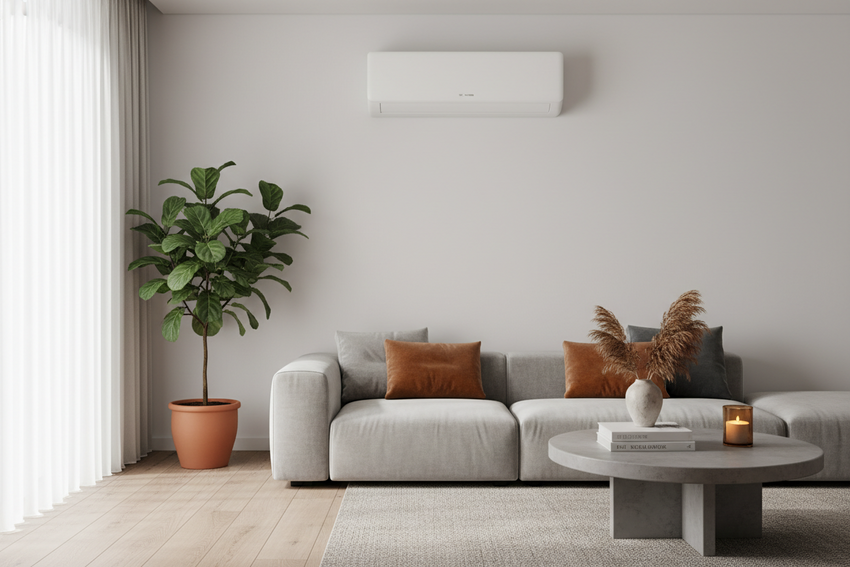

In ductless mini-split terminology, the "air handler" refers to the indoor unit — the wall-mounted, ceiling cassette, or floor-console unit installed inside the room. It contains the evaporator coil, blower fan, air filter, and drain pan. Unlike in a central HVAC system where the air handler is a large cabinet typically installed in an attic or utility closet, a mini-split air handler is compact and room-specific. This guide explains what the air handler does, how it works, and what you need to maintain it.

Klima - Smart Home Thermostat for Mini-splits, Air Conditioners and Heatpumps

Compatible with all brands of ACs and Mini-Splits Automate Climate Management Control remotely Reduce Energy Consumption Monitor bills in realtime

Try Now

What Is Inside the Air Handler?

Component	Function
Evaporator coil	In cooling mode: absorbs heat from room air. In heating mode: releases heat extracted from outdoor air into the room.
Blower fan / fan wheel	Draws room air across the evaporator coil and distributes conditioned air back into the room.
Air filter(s)	Captures dust, pet dander, and particles before they reach the coil.
Condensate drain pan	Collects moisture condensed from room air on the coil; routes it to the drain line.
Horizontal louvres (flaps)	Direct conditioned air up, down, or in a sweeping pattern.
Vertical louvres	Direct conditioned air left or right.
Indoor PCB	Processes remote control commands; reads room temperature sensor; communicates with outdoor unit.
IR receiver	Receives infrared signals from the remote control.

Air Handler Types

Type	Installation	Airflow Direction	Best For
Wall-mount (most common)	High on interior or exterior wall	1 direction (adjustable)	Most residential rooms
Ceiling cassette	Recessed in ceiling	4 directions	Open-plan spaces; aesthetics
Floor console	Near floor level	Upward	Rooms without high wall space; solariums
Concealed duct	Hidden in ceiling cavity	Through short ducts to grilles	Aesthetic preference; remodels

Air Handler Maintenance Schedule

Every 2 weeks (during heavy use): Clean the air filter — remove, rinse under warm water, dry fully, reinstall.
Monthly: Wipe down the front panel and louvres with a damp cloth to remove surface dust.
Annually: Clean the evaporator coil with no-rinse coil cleaner; flush the condensate drain; inspect the drain pan for algae or cracks; inspect the fan wheel for dust accumulation.

Stay cool and save more. Use code JONES15 to get 15% off your entire order—no strings attached.

Upgrade your comfort with a Klima today.

Frequently Asked Questions

How long does a mini-split air handler last?

The indoor air handler typically lasts as long as the outdoor unit — 15–20 years for premium brands with proper maintenance. Indoor units experience less mechanical stress than the outdoor unit's compressor, so air handler failures (typically the PCB or fan motor) usually occur after 8–15 years. Regular filter cleaning significantly extends the life of the fan motor by preventing the motor from working against restricted airflow.
